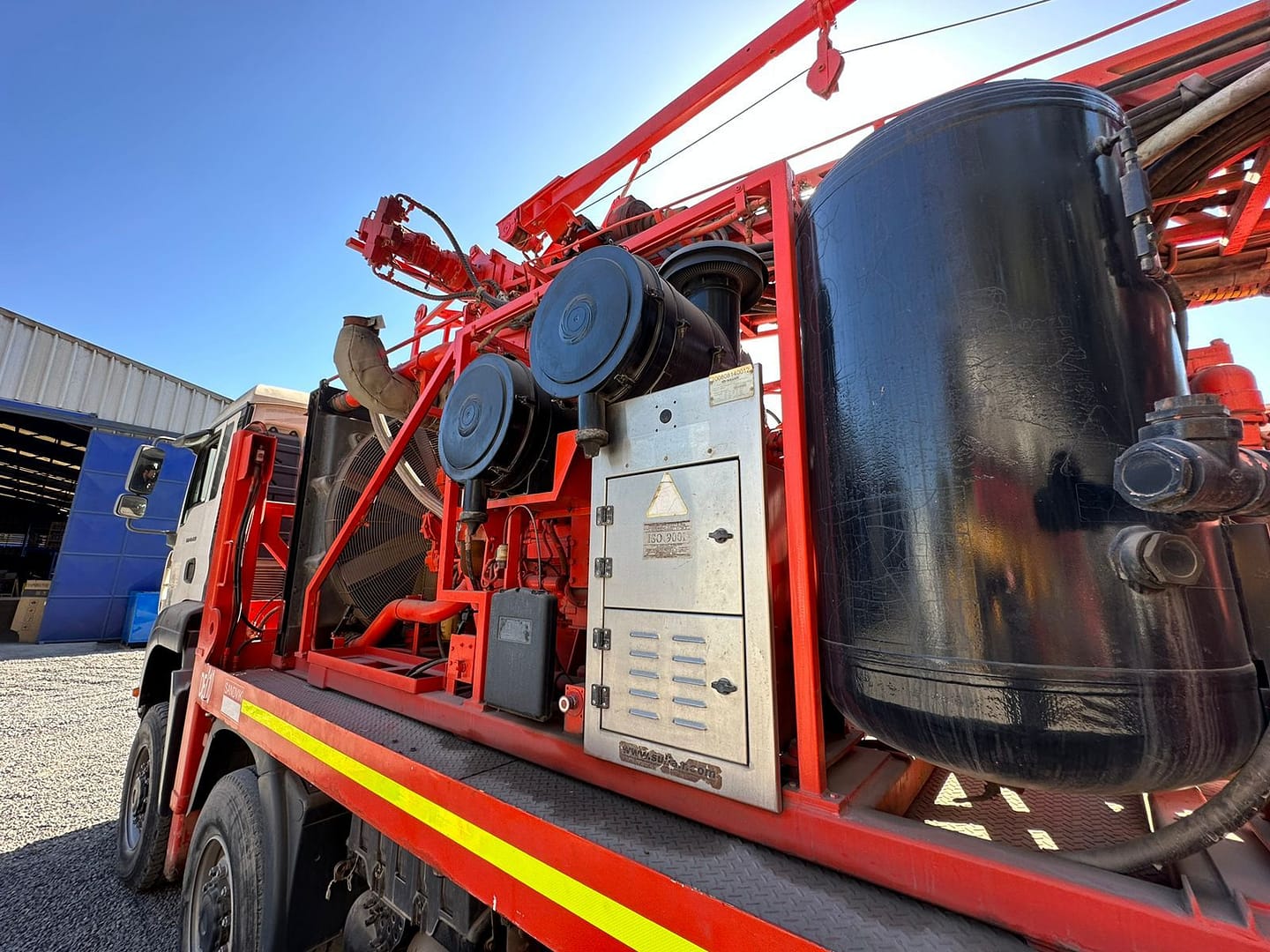

Drills

• Drilling technique: Surface multipurpose
• Depth capacity: RC 190m
• Depth capacity: Coring 954m
• Feed force: 4,5 t
• Feed stroke: 6.6 m
• Feed weight: 4589 kg
• Rpm of rotation head: 1556 rpm (max)
• Max torque of rotation head: 5095 Nm
• Pull force: 7.6 t
• Compressor engine: CAT C15
• Compressor size: 1150 cfm at 350 psi
• Compressor hours: 731h
• CAT C15 hours: 731h
• Engine for hydraulic pumps: Cummins QSB 6.7
• Feed rate: 41 M/min up – 29 M/min down
• Main winch capacity: 6,6 t
• Safety equipment: Fire surpression System
• Water pump: Hydraulic driven, FMC Bean W1122 140L/min and 1000 psi

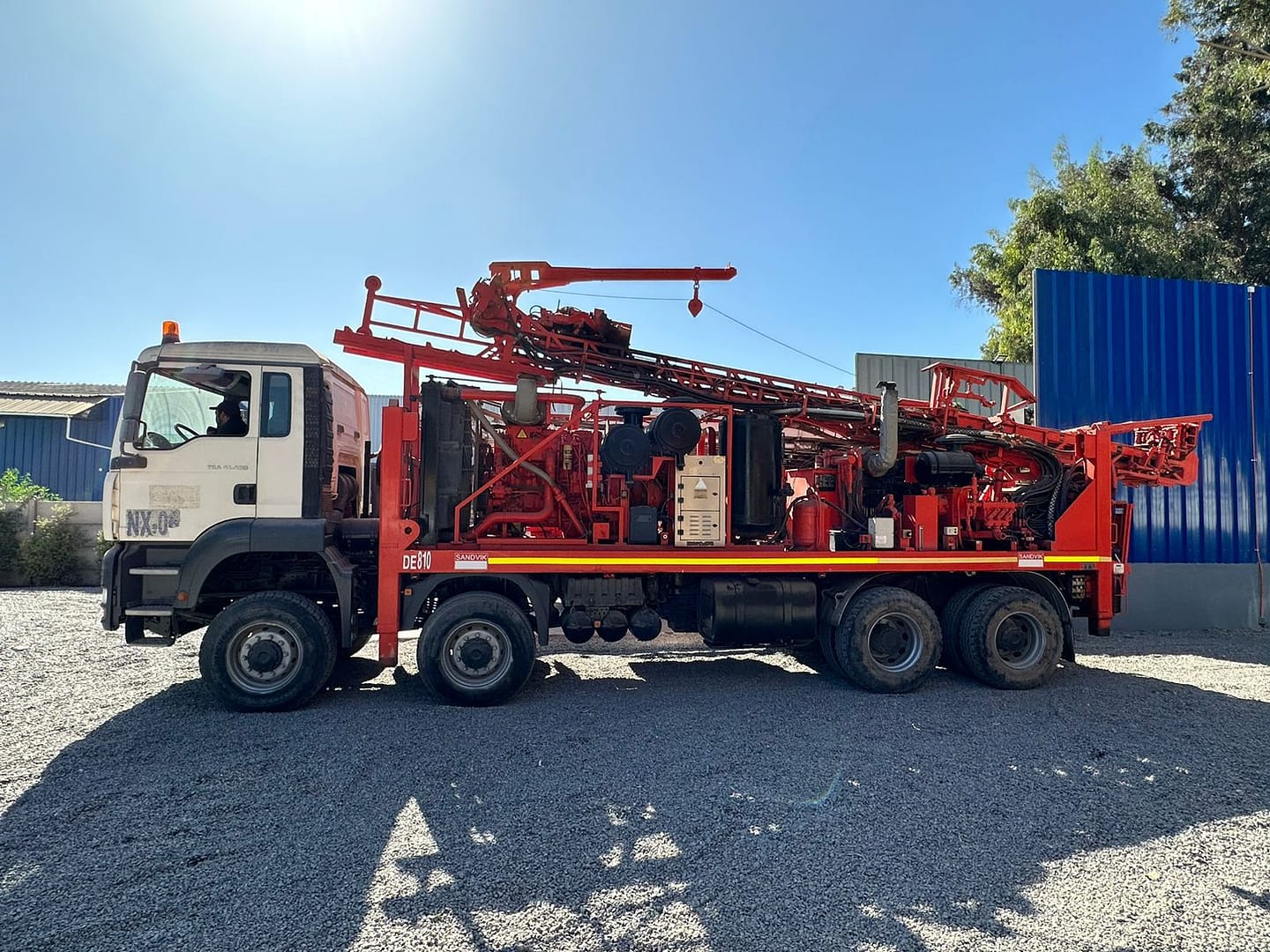

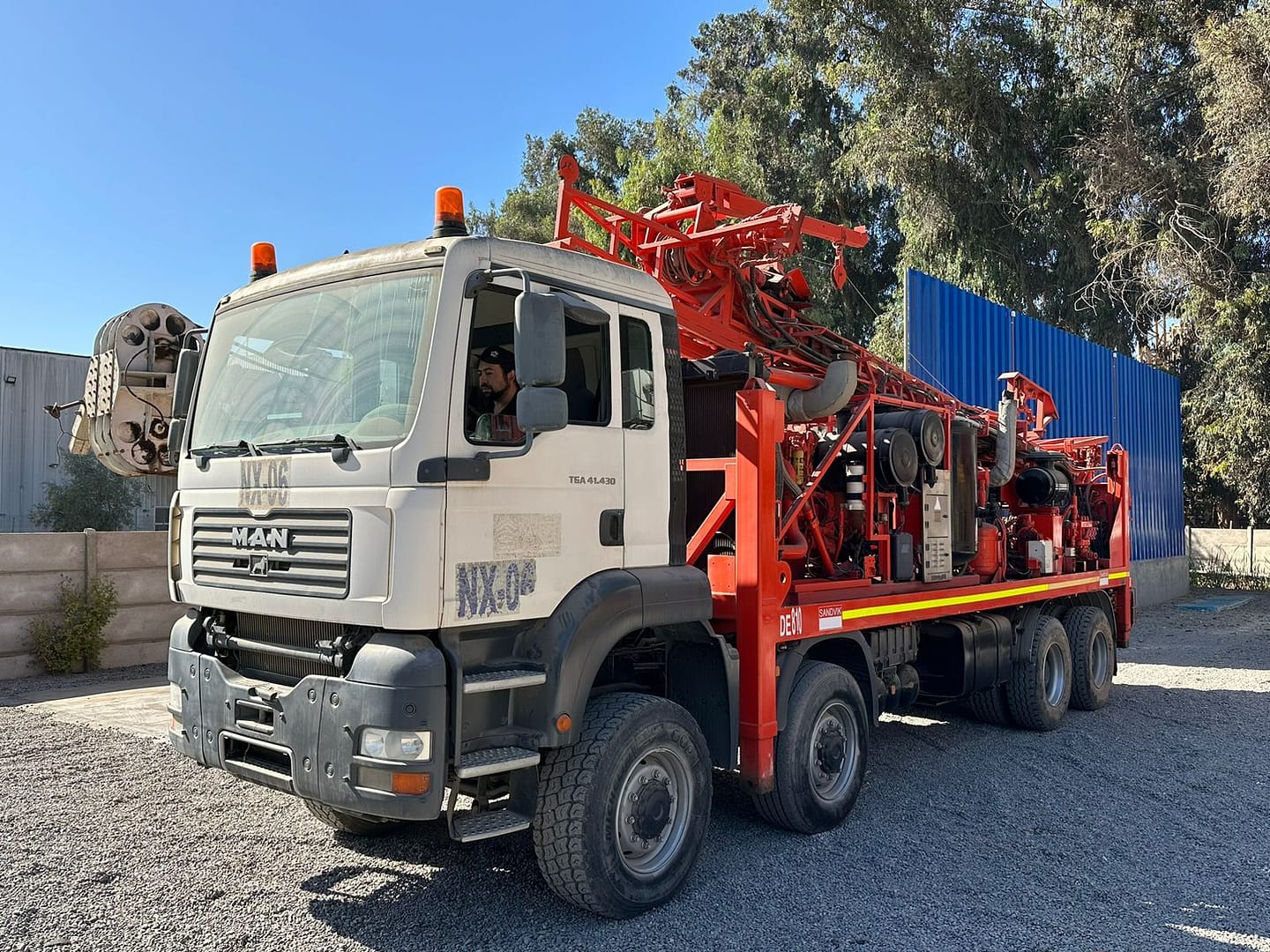

• Truck mounted: MAN TGA 41.430 8X8
• Truck km: 6.097km
• ⁠Exworks Santiago, Chile
