Artic Trucks

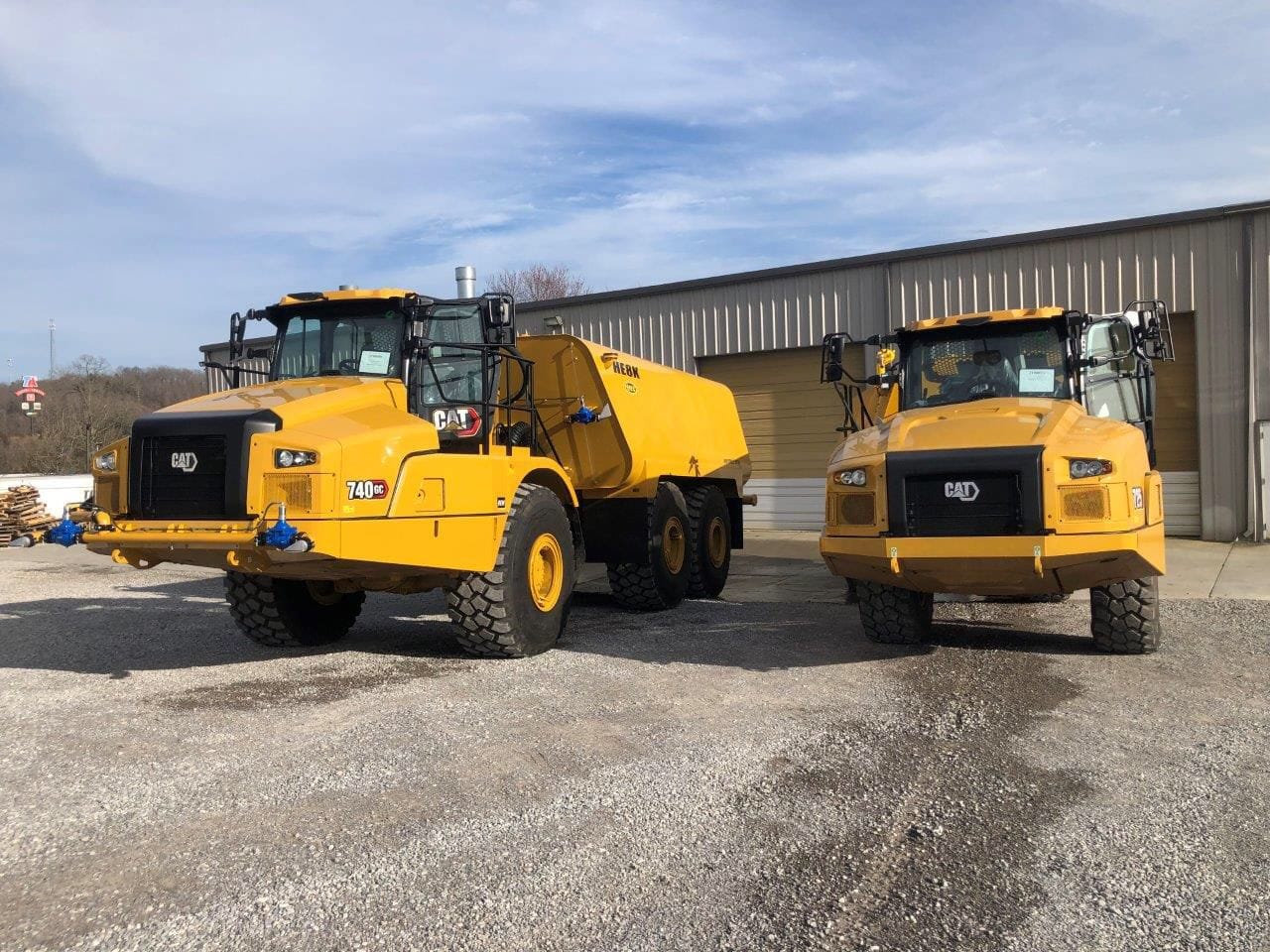

New 8,000 Gallon Water Tank Model HH8KS-AT Installed on NEW CAT 740GC standard frame chassis (Low Profile Design, Heavy Duty Construction) Full 1/4″ A36 Steel Plate through entire tank (including baffles) Full 3/8″ Bottom Belly Plate, 3/8″ Thick Heads and Fenders Welded 100% Inside and Out Full Longitudinal & Transverse Baffles(honeycomb design) – welded continuously Full Length longitudinal frame runners sloped to OEM frame w/ rumber boarding Rear Ground Fill Pipe & Top Man Hole for Filling with debris screen Integrated Steel Fenders fitted for chassis Rear Sump with Tank Access from bottom Berkeley B4JRMBH 5×4 Hydraulic Driven centrifugal pump HEC Custom Hydraulic system driven by OEM system External Electric Hydraulic Oil Cooler 5 Hydraulic Operated Spray Heads (2 Front Tank Corners & 3 Rear) — shown with optional front spray bar with 2 street flusher heads *Truck shown with optional 6″ rear dribble bar (gravity fed) across rear – in-cab controlled with butterfly valve In-cab operator control panel w/ individual operated control switches Hannay Rear Hose Reel w/ 50′ of 1 1/2″ Hose Remote Control Water Cannon w/ Nozzle and Joystick control Interior Coated 100% w/ Heavy 2 part Submersible Ceramic Coating Bare Metal Prepared and Sealed with Epoxy Tank Painted CAT Yellow w/ Polyurethane Enamel Full LED Light Package Full Installation on NEW CAT 740GC Chassis at shop (Lenoir City, TN)
